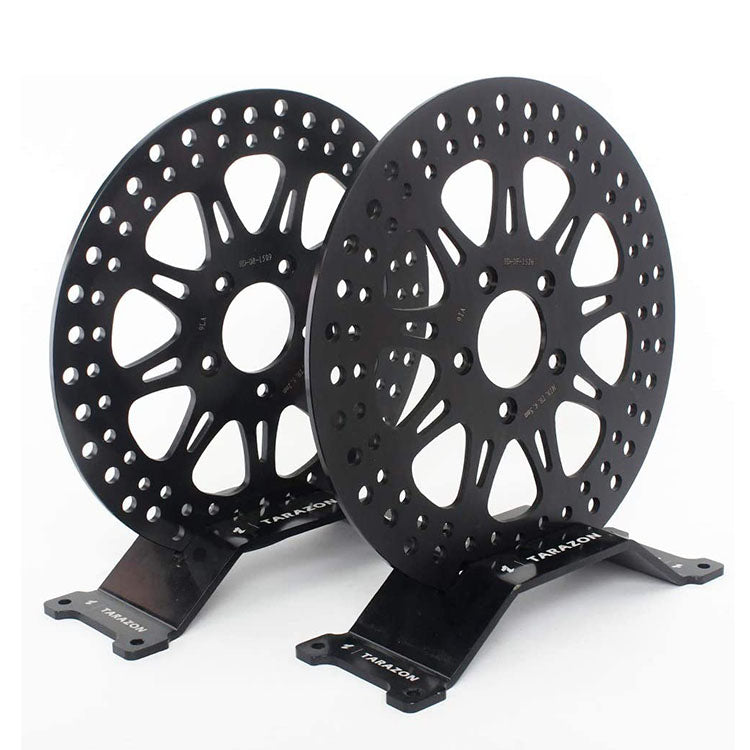

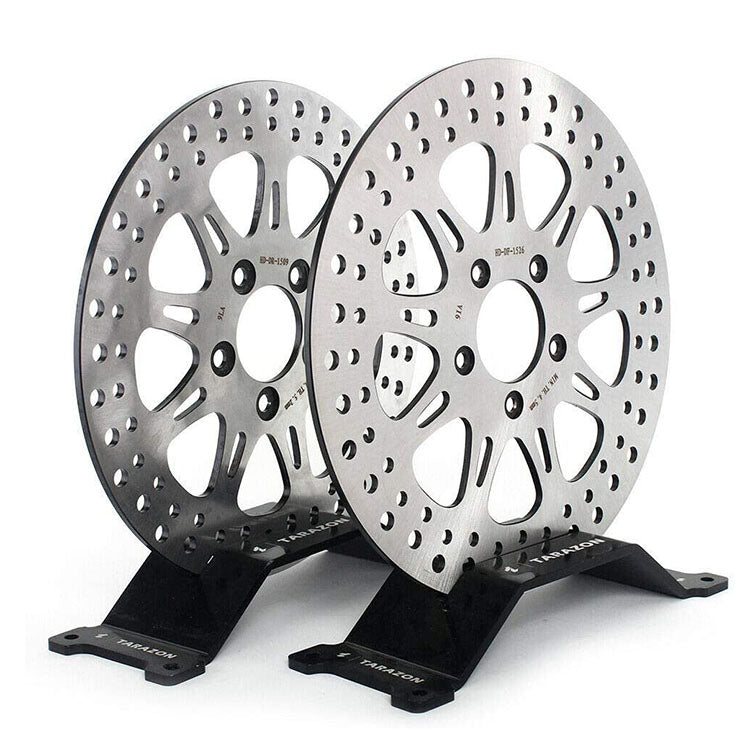

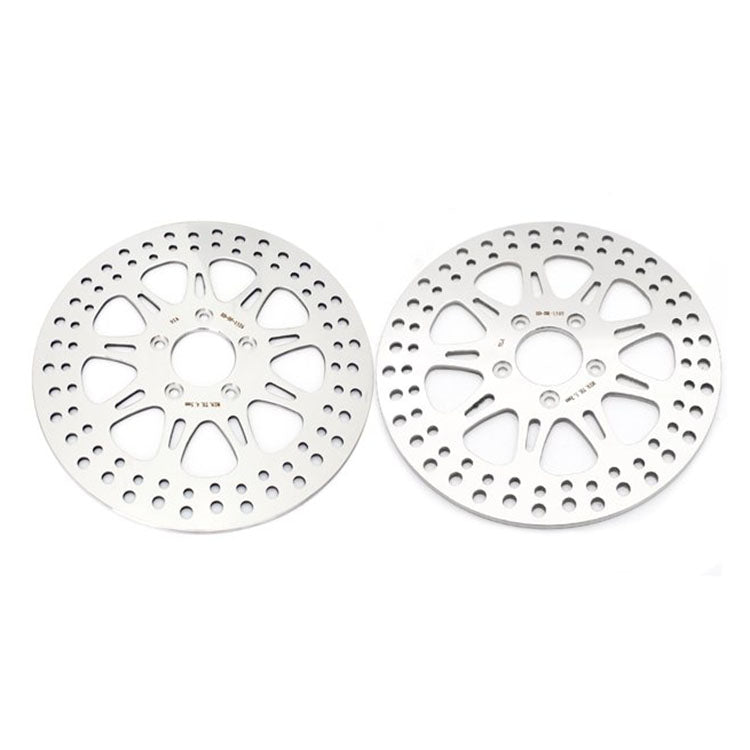

For Harley Davidson Softail Standard / Slim / Heritage Classic / Fat Boy / Deluxe / Breakout 2015-and up 11.8" Front 11.5" Rear Brake Disc Rotors
- Made from racing performance 420 (2Cr13 ) stainless steel to provide durable braking power.
- Heat treatment harness HRC 36+-2 ensure brake area not warped.
- Round design & Light weight & good heat dissipation.
- Drilled holes for better heat dispersion & keeps your brake system clean and run cooler.
- Direct replacement, no additional hardware required. Easy to install.
- Brand new, never mounted.
- Front brake disc fits for front left position.
Please check the fitment model & year below carefully before your purchase to make sure it's what you want.
Fit for:
Harley FLS 103" Softail Slim (JRV) 2015-2016;
Harley FLS 96" Softail Slim (JR5) 2015;
Harley FLSS 110" Softail Slim S (JS9) 2016-2017;
Harley FLSTC 103" Heritage Softail Classic (BWV) 2015-2017;
Harley FLSTC 96" Heritage Softail Classic (BW5) 2015;
Harley FLSTF 103" Fat Boy (BXV) 2015-and up;
Harley FLSTF 96" Fat Boy (BX5) 2015;
Harley FLSTFB 103" Fat Boy (JNV) 2015-and up;
Harley FLSTFB 103" Fat Boy Low (JNV) 2016;
Harley FLSTFB 96" Fat Boy Lo (JN5) 2015;
Harley FLSTFBS 110" Fat Boy S (JT9) 2016-and up;
Harley FLSTN 103" Softail Deluxe (JDV) 2015-2017;
Harley FLSTN 96" Softail Deluxe (JD5) 2015;
Harley FLSTNSE 110" CVO Softail Deluxe (TF) 2015-and up;
Harley FXSB 103" Breakout (BFV) 2015-2017;
Harley FXSB 96" Breakout (BF5) 2015;
Harley FXST 96" Softail Standard (BVV) 2015-and up.

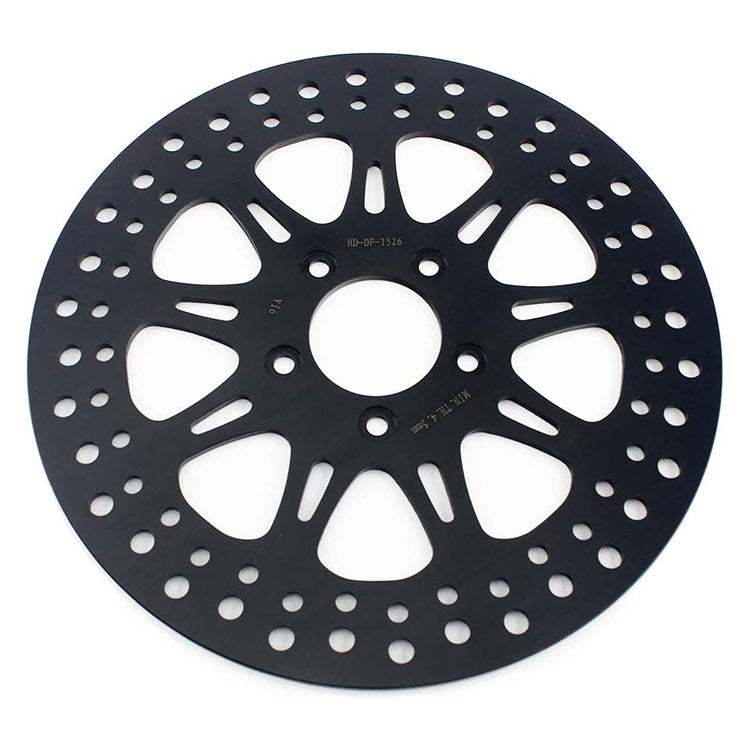

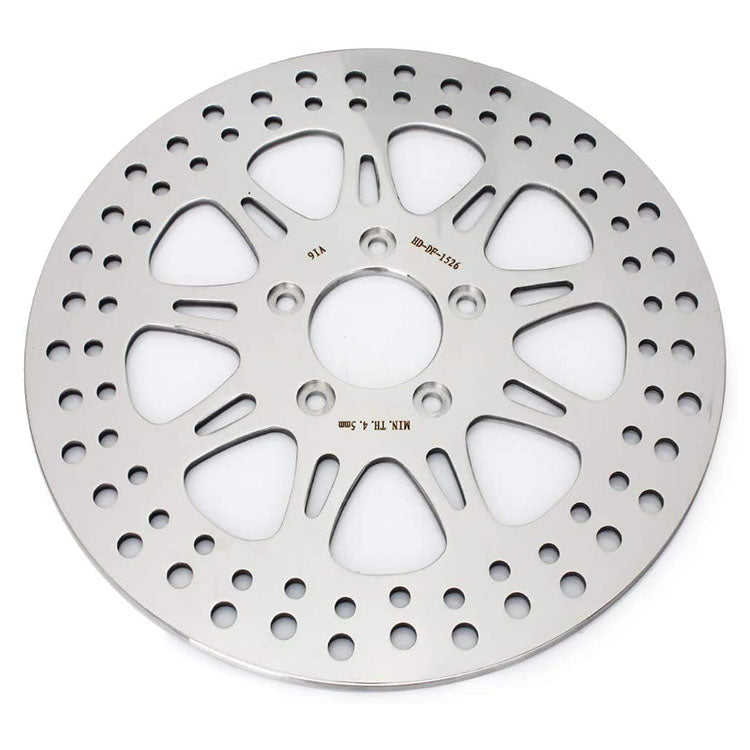

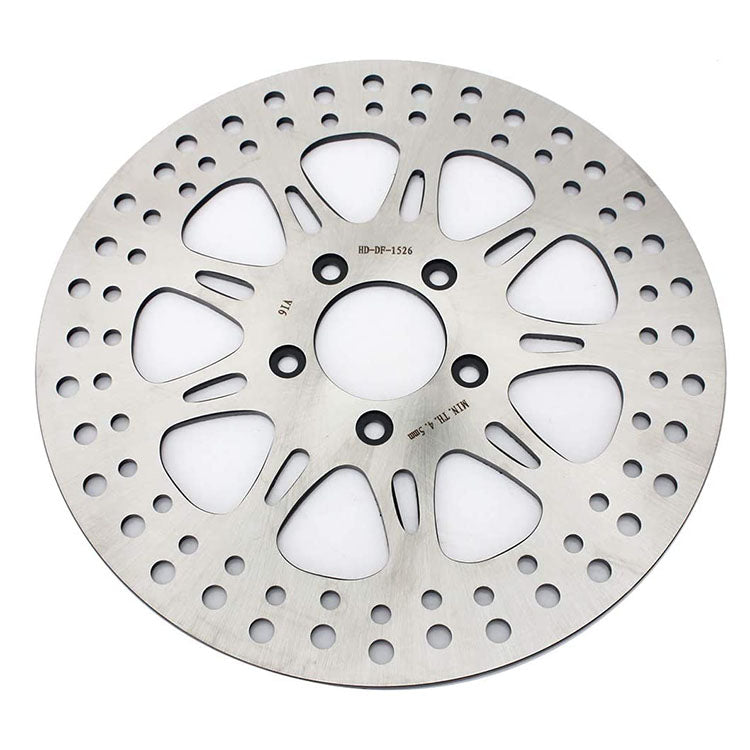

Front Brake Disc:
Outer Diameter 300mm
Inner Diameter 56.5mm
Thickness 5mm
Hole Quantity 5
Hole Size 8.5mm
Hole Circumference 82.5mm

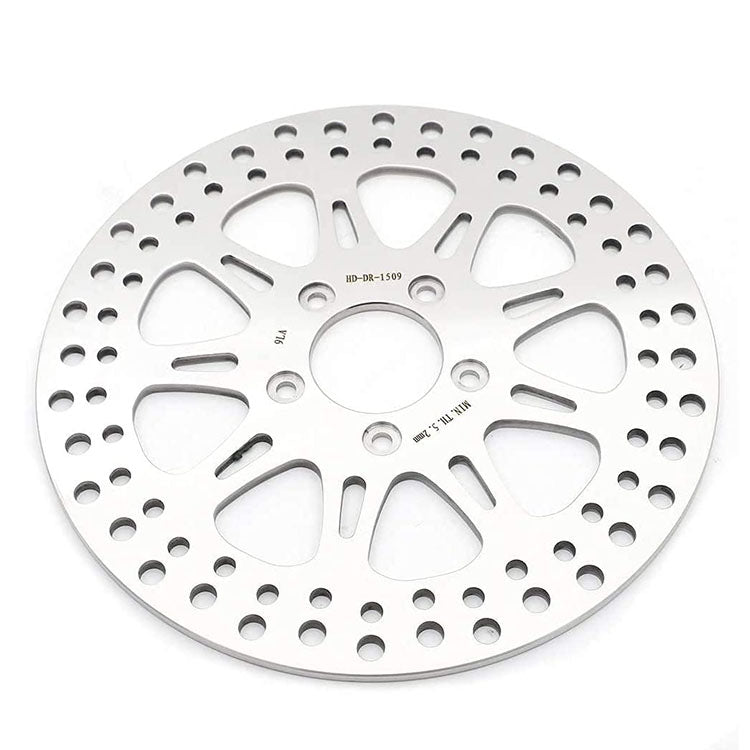

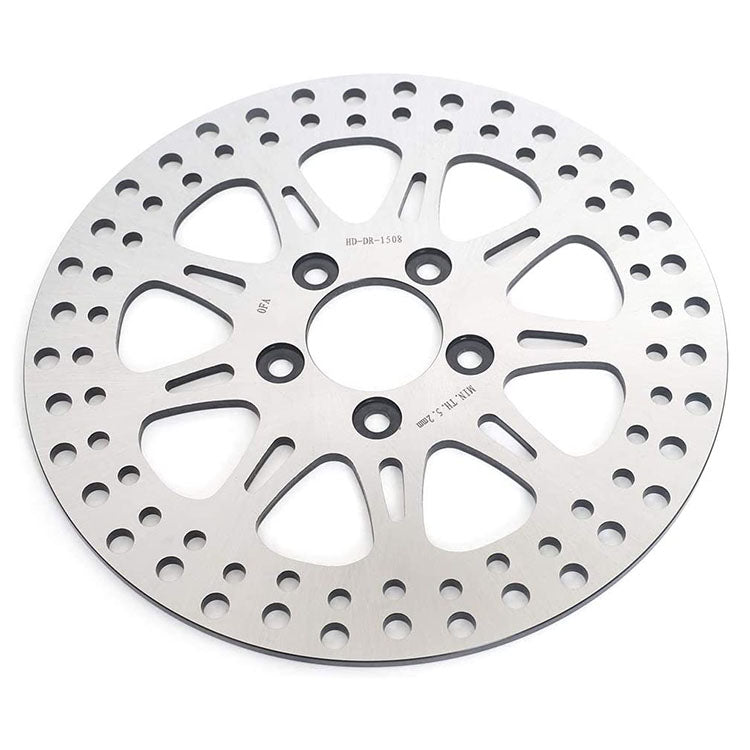

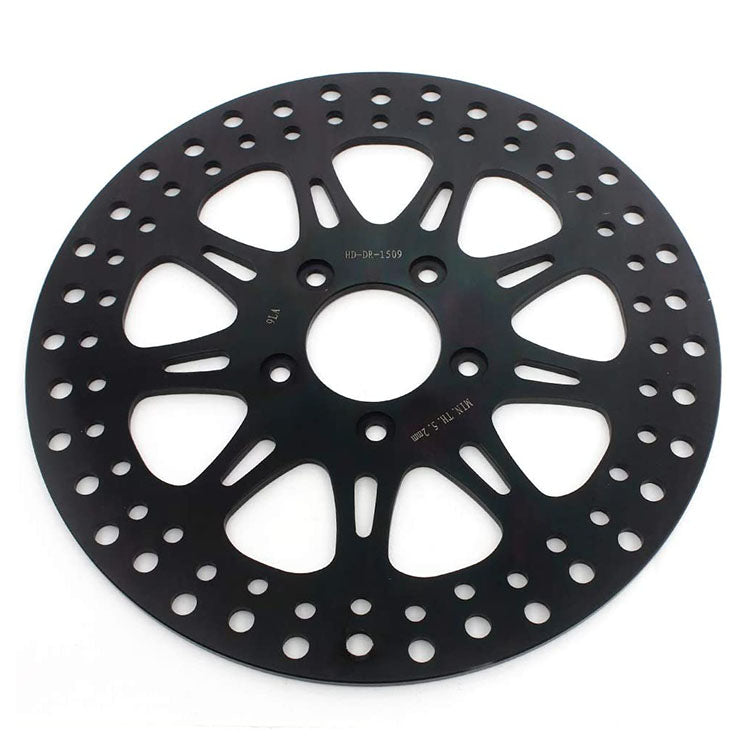

Rear Brake Disc
Outside Diameter: 292mm
Inside Diameter: 56.5mm
Thickness: 5.8mm
Hole Quantity 5
Hole Size: 10.5mm
Hole Spacing: 82.5mm
