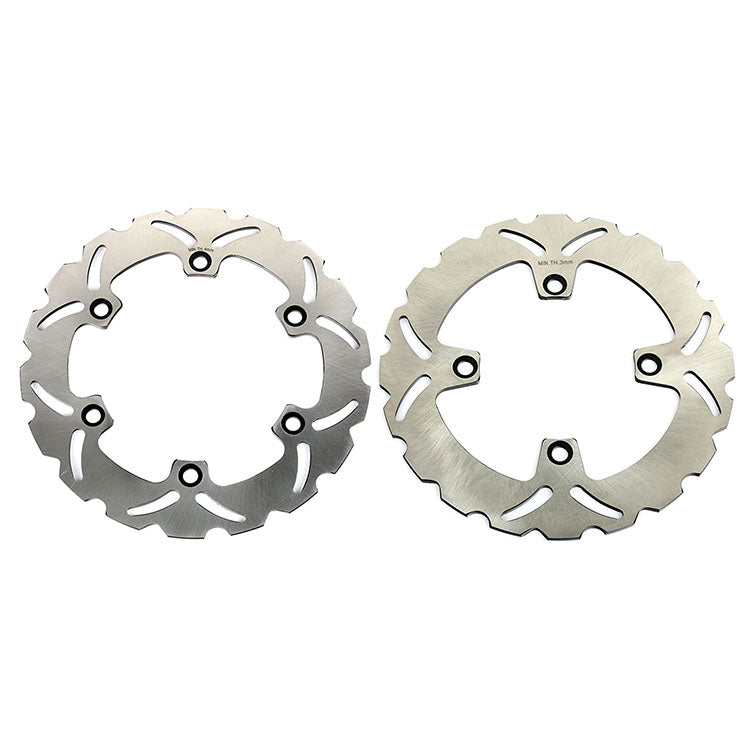

Front Rear Brake Disc Rotor for Honda Silver Wing 400 2006-2008 / Silver Wing 600 2001-2006

• Fit for:
  HONDA SILVER WING scooter 400CC model year 2006-2008;
  HONDA SILVER WING (PF01/e4/0114) scooter 600CC model year 2001-2006.
• Discs can stay cool is by adding slots or grooves to the disc. These slots also provide an escape route for heat, gas and waste material, preventing it from building up on the contact surfaces.
• Laser cut from 420 stainless steel, heat treated to ensure warp resistance, parallel double disc ground to assure perfect flatness.
• Directly bolt on, no additional hardware necessary.
• Wave design allows for better heat dissipation and water dispersion, the venting slots are designed to reduce the brake surface temperature and make the dirt and water are dispersed quickly.
• We marked the Min Thickness on the surface ,it means you should replace the brake disc rotor when the thickness with Minimum Thickness to ensure save ridding

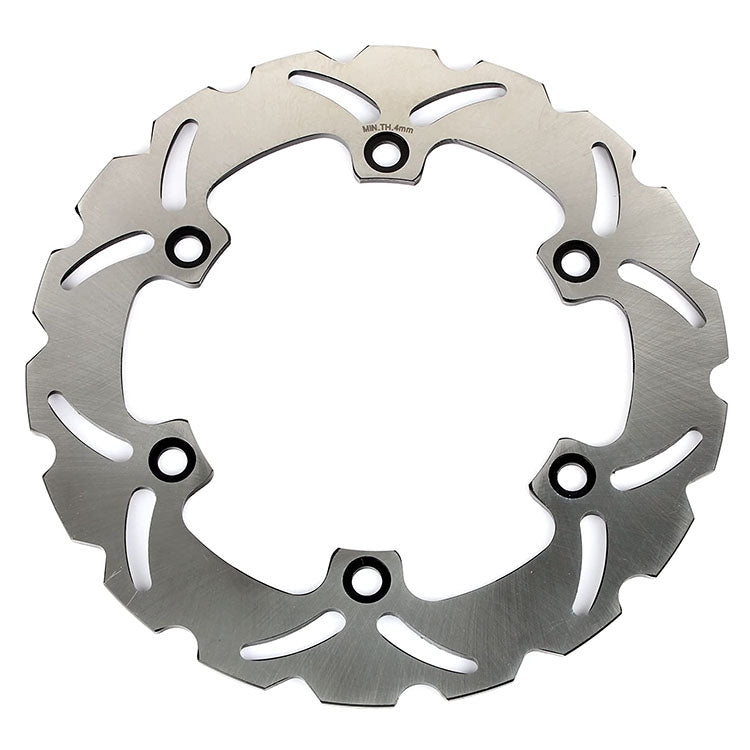

Front Brake Disc
Outer Diameter: 256mm
Inner Diameter :144mm
Thickness: 5mm
Hole quantity: 6
Hole size: 10.4mm
Hole spacing : 166mm

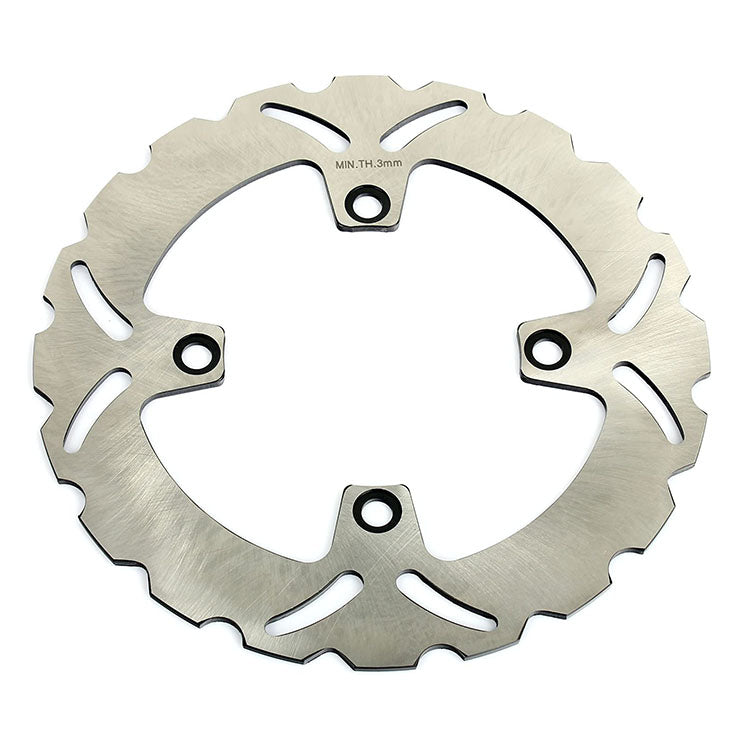

Rear Brake Disc
Outer diameter: 240mm
Inner diameter: 105mm
Thickness: 4mm
Hole quantity: 4
Hole size: 10.4mm
Hole spacing: 125mm
