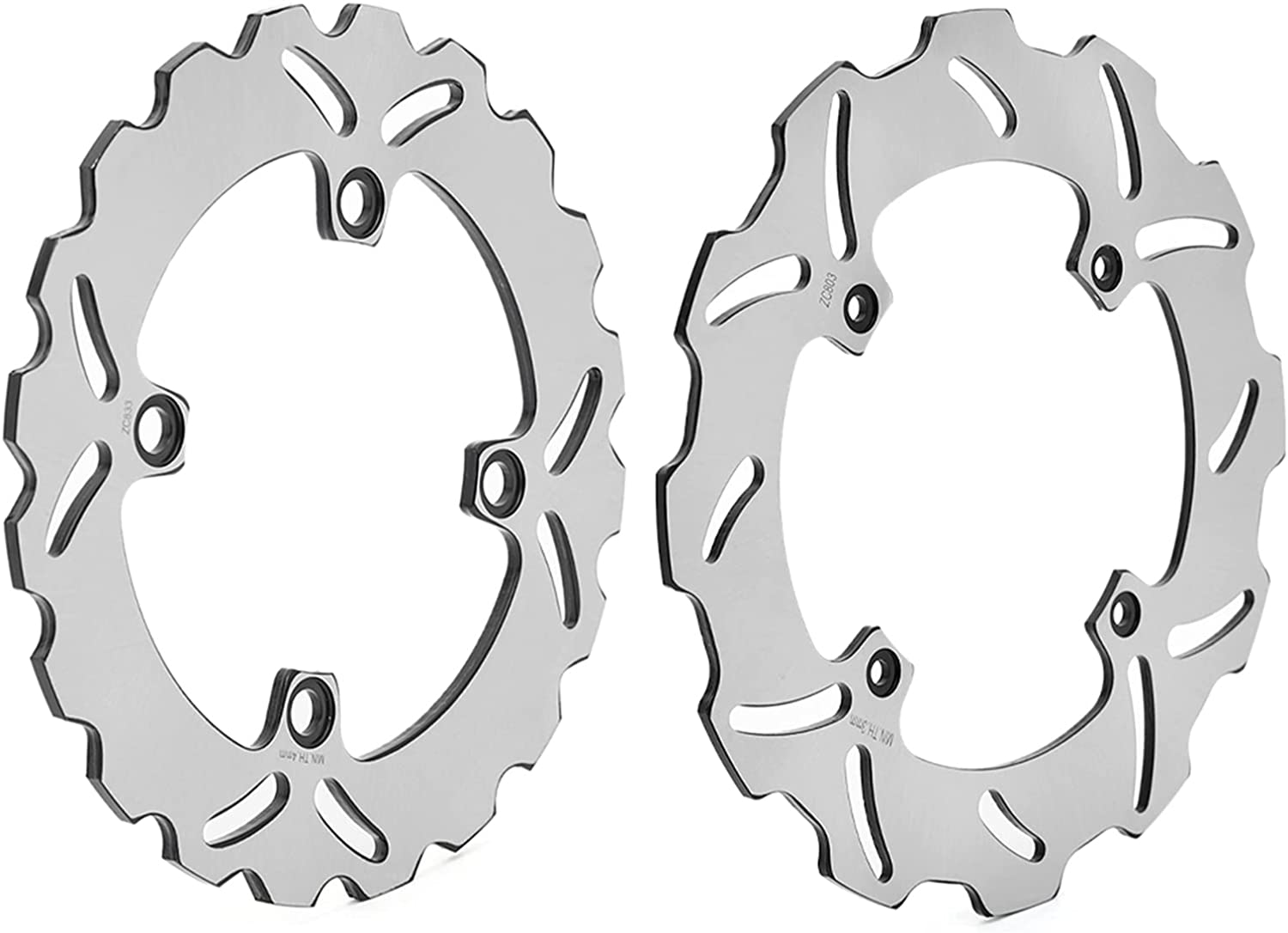

Front Rear Brake Disc Rotors for Honda SL230 1997-2004 / CRF230L 2008-2012 / XR250R 1990-2004 / XR400R 1994-2005

• Fit for:
  Honda SL 230CC Free Landsport V,W,X,1,4 MD33 1997-2004;
  Honda CRF 230 L model year 2008-2012;
  Honda XR R 250 1990;
  Honda XR R 250CC model year 1991-1995;
  Honda XR R (ME06/EBE) 250CC model year 1996-2004;
  Honda XR R 400CC model year 1994-2005;
  Honda XR R 600CC model year 1988-1993;
  Honda XR R 600CC model year 1994-1999;
  Honda XR R 600CC model year 2000- 2004;
  Honda CRM R 250CC model year 1991-1993;
  Honda XL R 250CC MD11 D447 1988-1993.
• Lighter than the OEM brake rotor to improve handling.
• Stainless steel 420 2Cr13 material with heat treated for durable braking power & brake area not warped.
• All the venting slots are designed for best cooling and performance.
• The grooves on the disc surface prevent mud and dirt packed to interfer the braking performance, it offers maximum clean and incredible stopping power.
• Direct bolt on. Easy installation, no modification required.

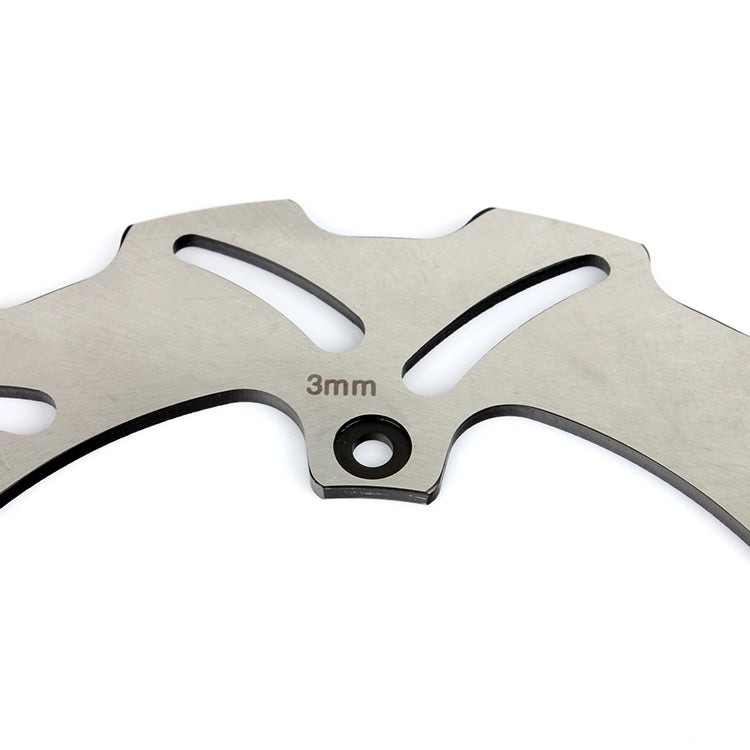

• Please replace your rotor when it reaches the minimum thickness we marked on the surface to ensure your safety

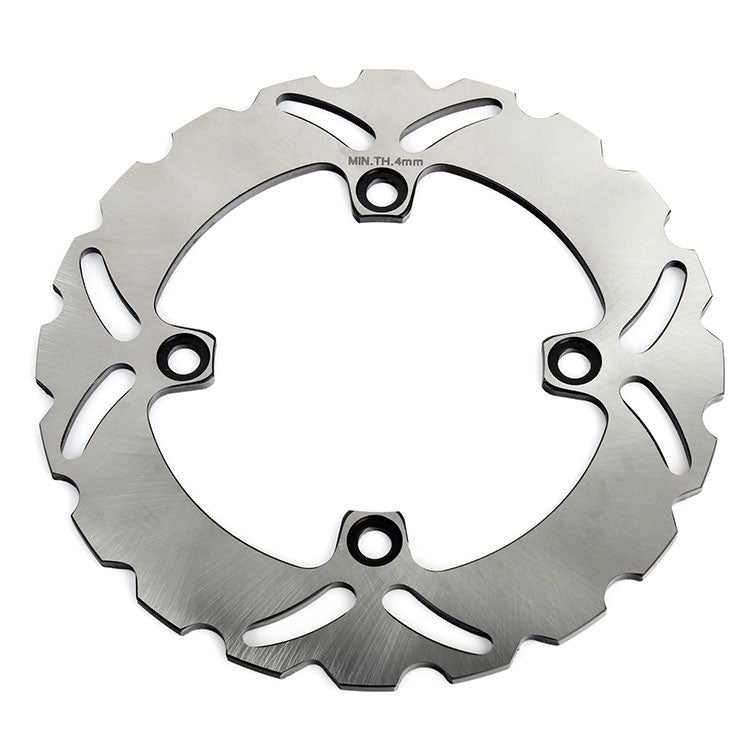

Front Brake Disc
Outer Diameter: 240mm
Inner Diameter :118mm
Thickness: 4mm
Hole quantity: 4
Hole size: 6.4mm
Hole spacing : 134mm

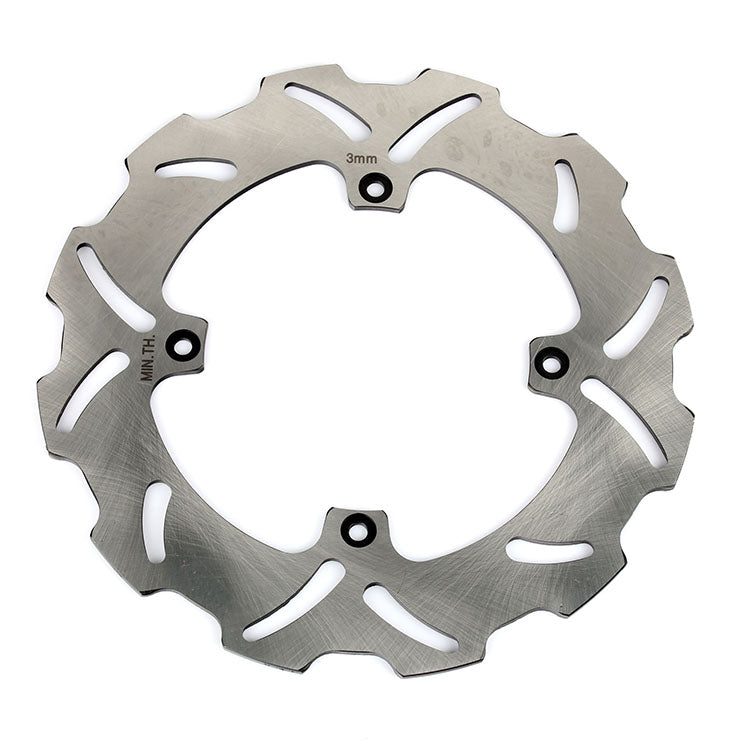

Rear Brake Disc
Outer diameter: 220mm
Inner diameter: 105mm
Thickness: 5mm
Hole quantity: 4
Hole size: 10.4mm
Hole spacing: 125mm
