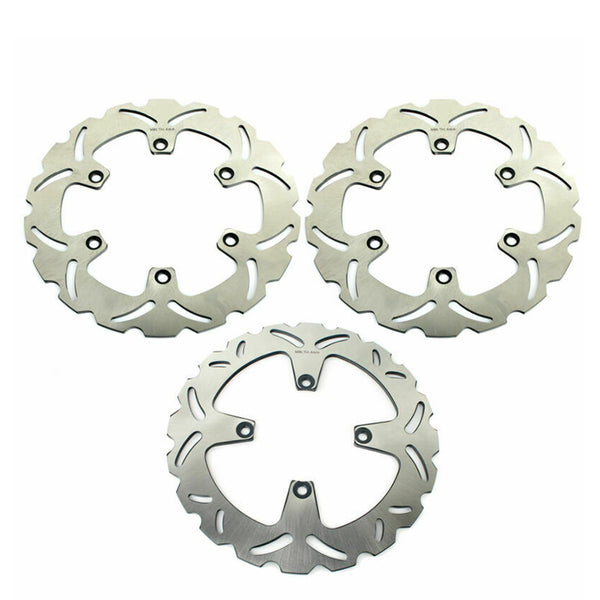

Front Rear Brake Disc Rotors for Honda VFR750F Interceptor 750 (RC36) 1990-1993

• Fit for Honda VFR FL-FM-FN-FP RC36 750CC model year 1990-1993.
• 420 stainless steel provides strong & reliable braking power, heat treated to ensure warp resistance.

• The wave shape of the disc ensures good heat dissipation under heavy braking sessions, reducing brake fade, minimizing warping and ensuring rotor's longevity.

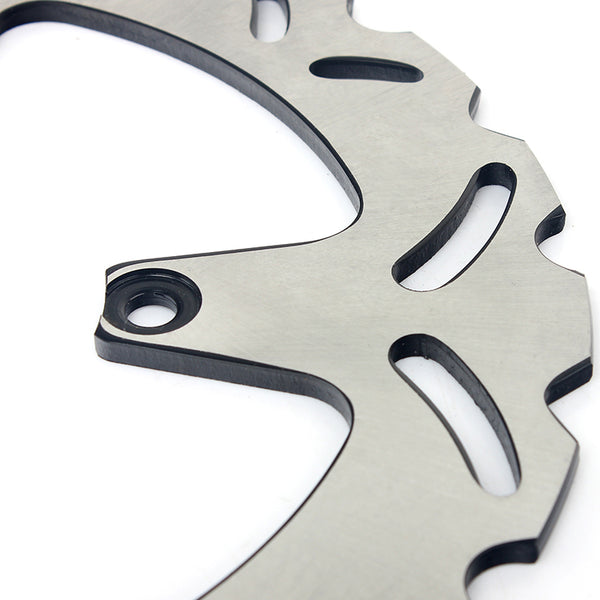

• The venting slots are designed to reduce the brake surface temperature and make the dirt and water are dispersed quickly.
• Wave shape brake disc rotor 30% light wieght than OEM.
• Directly bolt on, no additional hardware necessary.
• We marked the Min Thickness on the surface ,it means you should replace the brake disc rotor when the thickness with Minimum Thickness to ensure save ridding

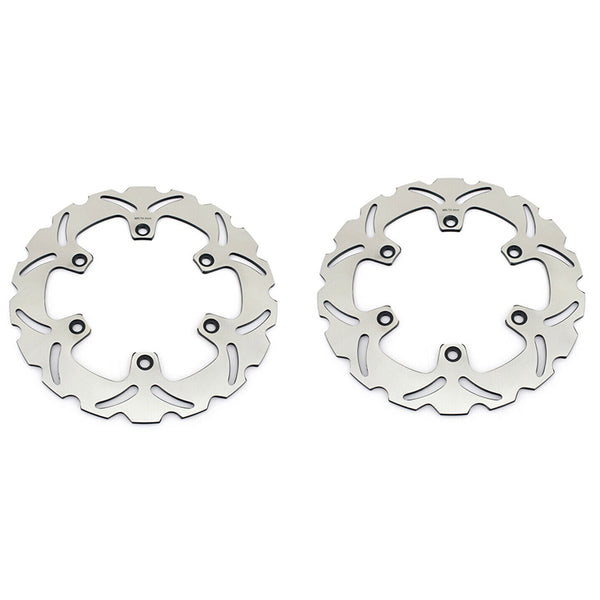

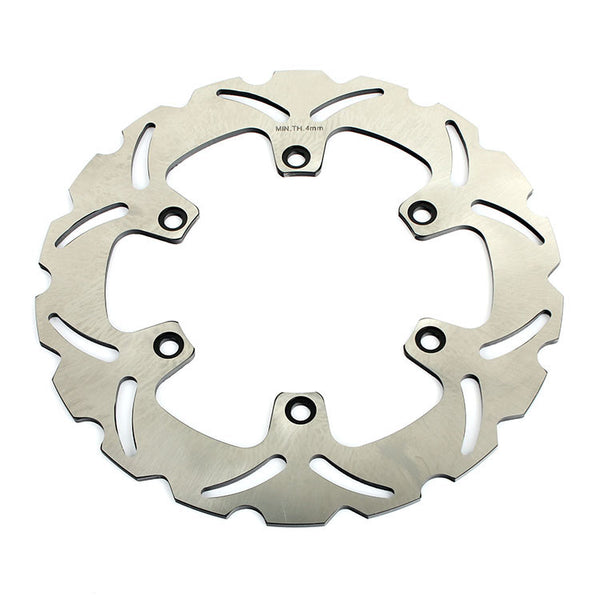

Front Brake Disc
Outer Diameter : 296mm
Inner Diameter: 144mm
Thickness: 5mm
Hole Quantity: 6
Hole Size : 10.4mm
Hole Spacing : 166mm

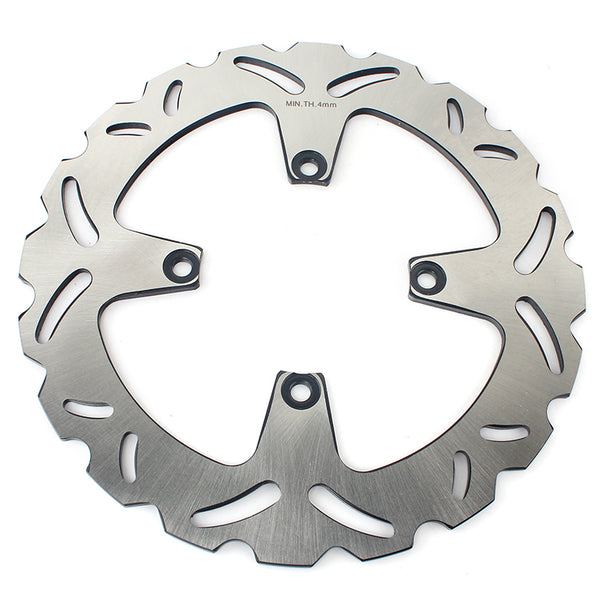

Rear Brake Disc
Outer diameter: 256mm
Inner diameter: 94mm
Thickness: 5mm
Hole quantity: 4
Hole size: 8.5mm
Hole spacing: 110mm
