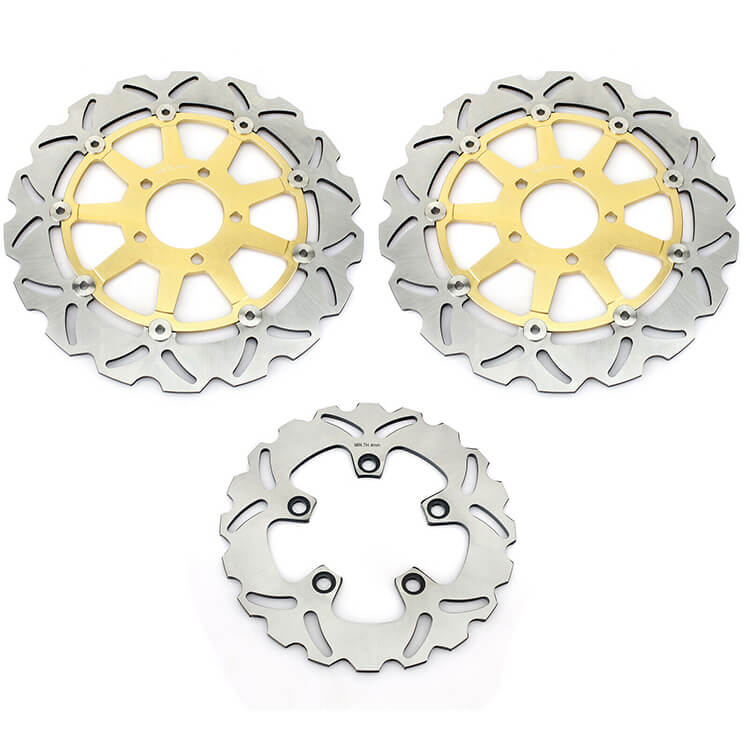

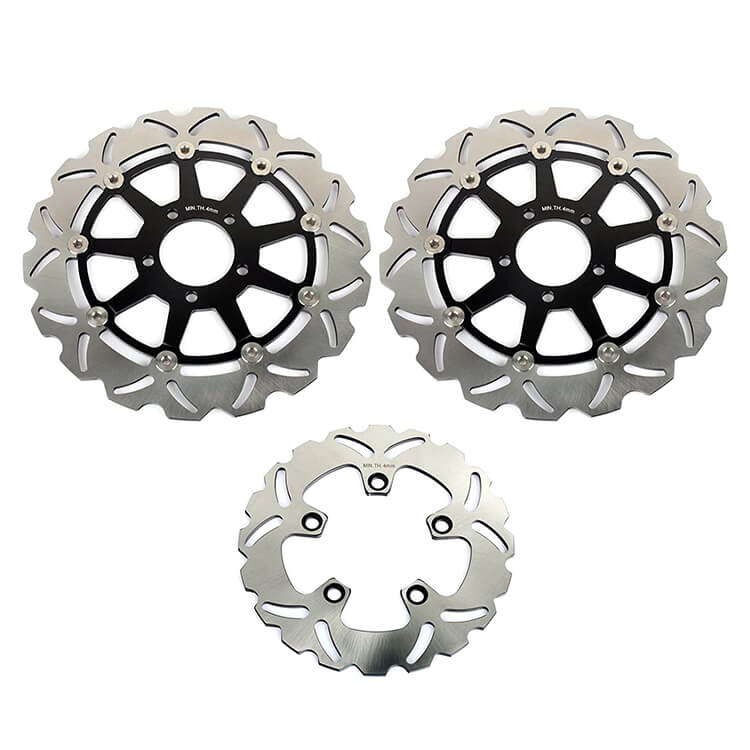

Front Rear Brake Rotors for Suzuki GSX-R600 1997-2003 GSX-R750 1996-2003 GSX-R1000 2001-2002 TL1000R 1998-2003 TL1000S 1997-2001

Fit for:
Suzuki GSX R (AD/H583) 600CC model year 1997-2000;
Suzuki GSX R (WVBG/e4/0100) 600CC model year 2001-2003;
Suzuki GSX R T (SRAD) 750CC model year 1996-1999;
Suzuki GSX R Y (WVBD/e4/0068) 750CC model year 2000-2003;
Suzuki GSX R (WVBL/e4/0108) 1000CC model year 2001-2002;
Suzuki TL R (AM/H977) 1000CC model year 1998-2003;
Suzuki TL S (AG/H632) 1000CC model year 1997-2001.

• Heat treated 420 2Cr13 stainless steel & 6061 T6 aluminum material delivers maximum stopping power and greatly enhances braking performance.

• Heat treatment ensures brake area not warped.
• The shape of the disc ensures good heat dissipation under heavy braking sessions, reducing brake fade, minimizing warping and ensuring rotor longevity.
• New scraper slot system to keep your brake system clean and run cooler.
• Wave design for light weight & good heat dissipation. Wave shape brake disc rotor 20% light wieght than OEM rotor.
• Round shape rotor, better than OEM rotor, good for racing.
• Replaces original disc with no modification required.
• Please replace your rotor when it reaches the minimum thickness we marked on the surface to ensure your safety

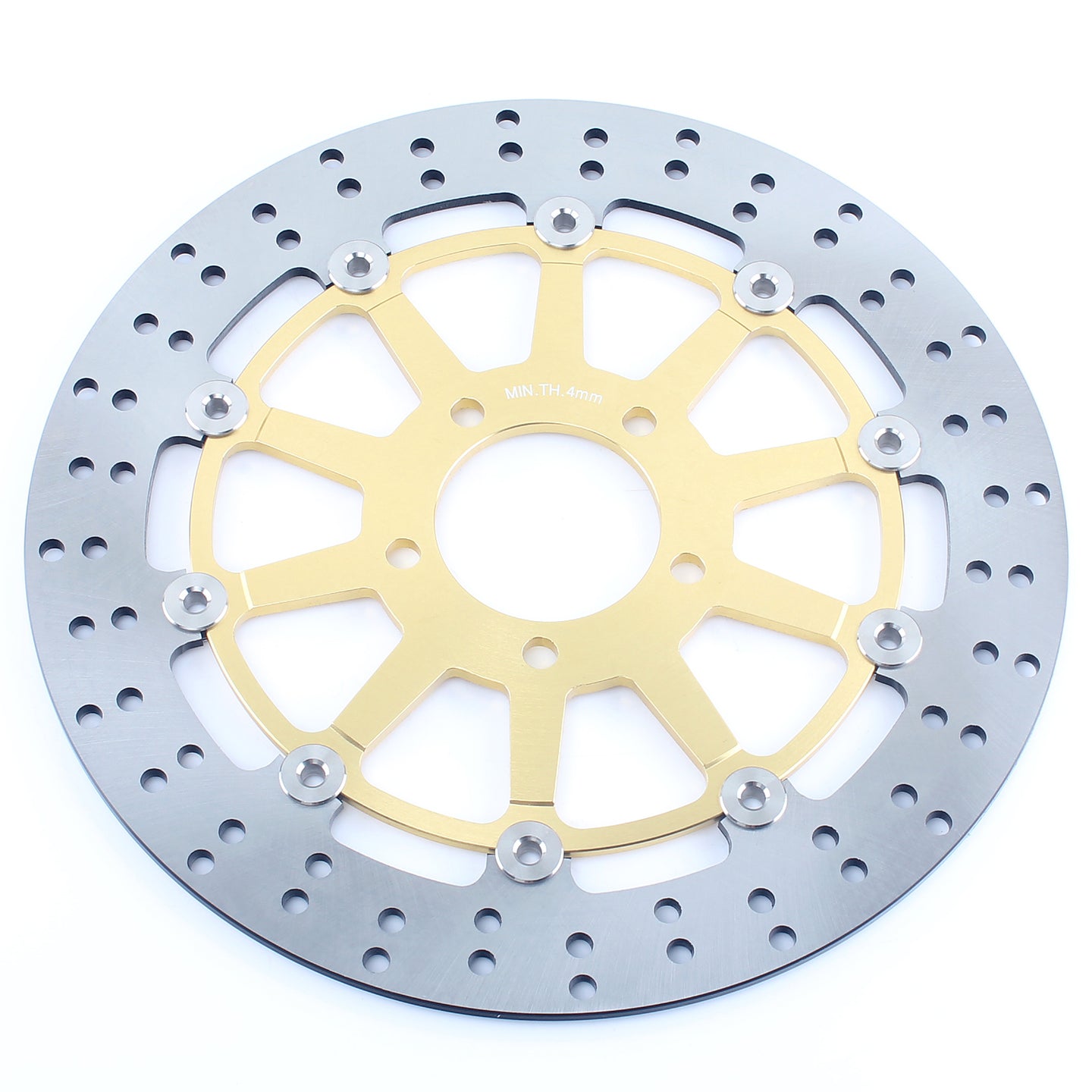

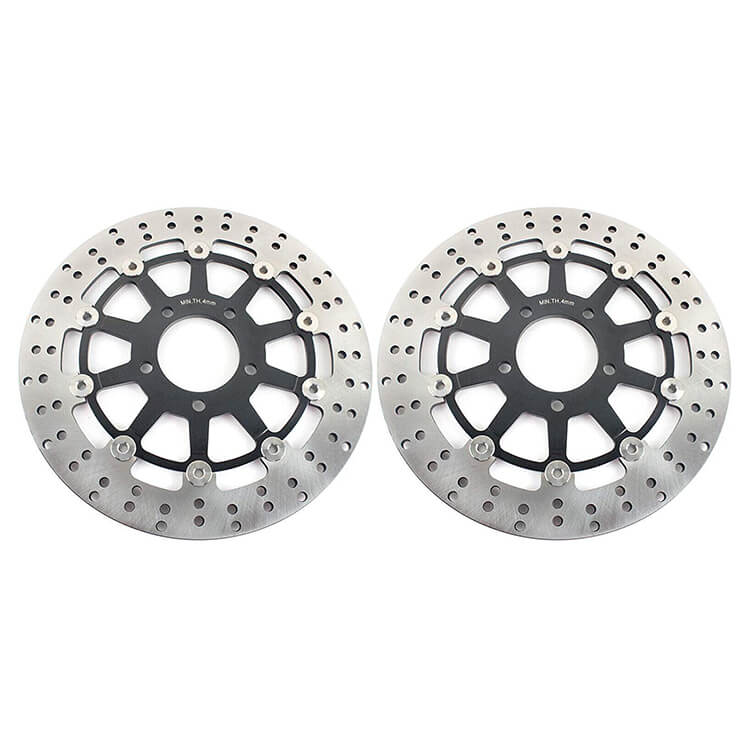

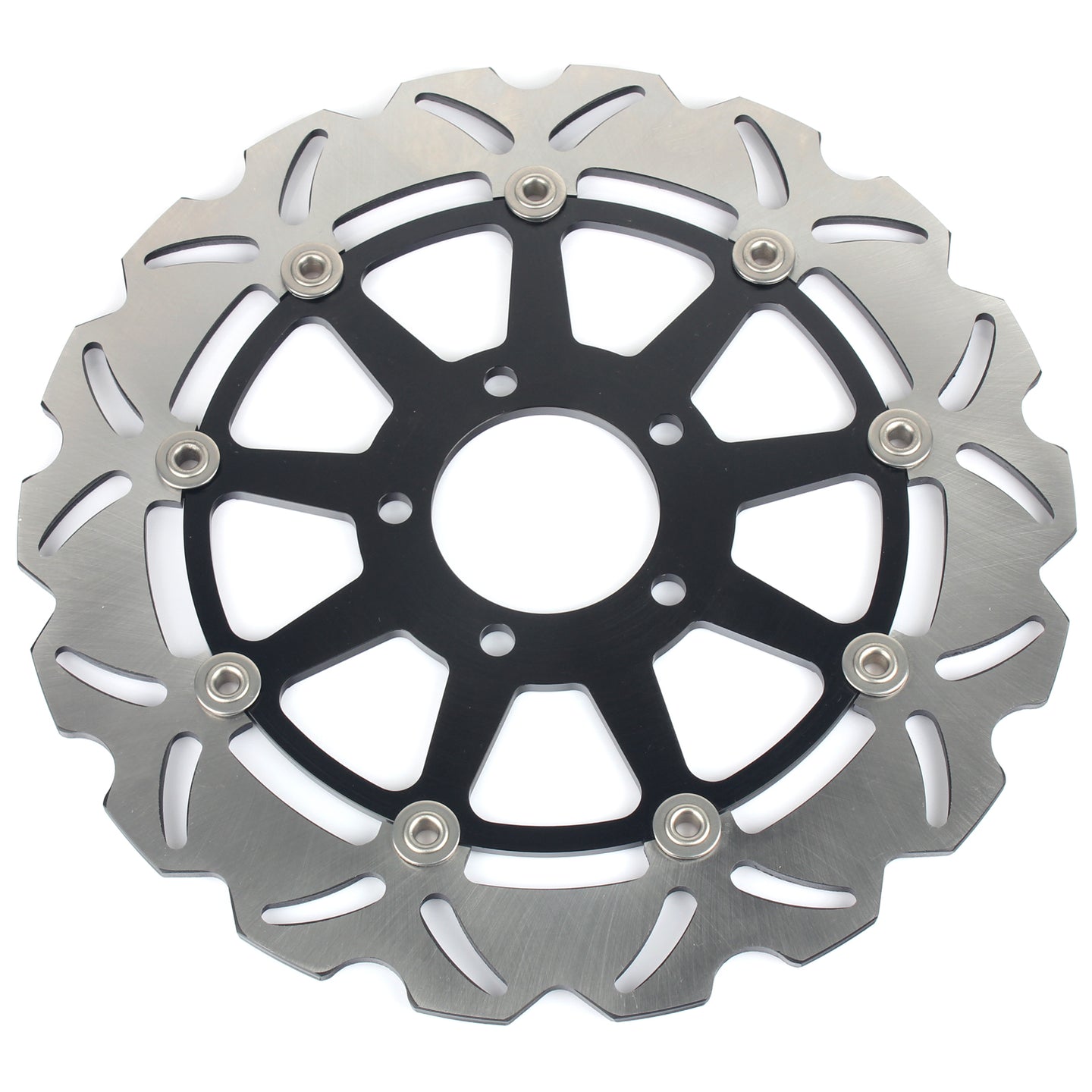

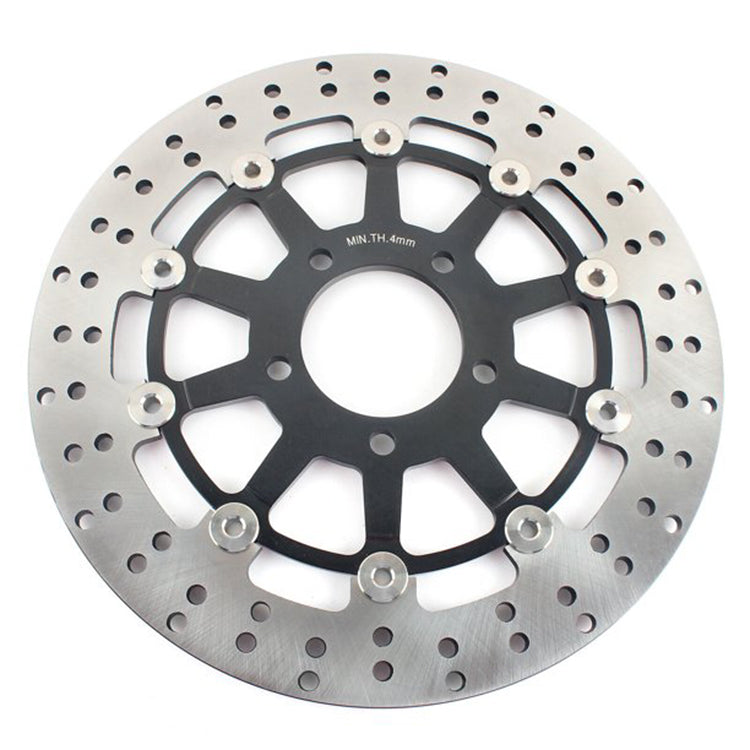

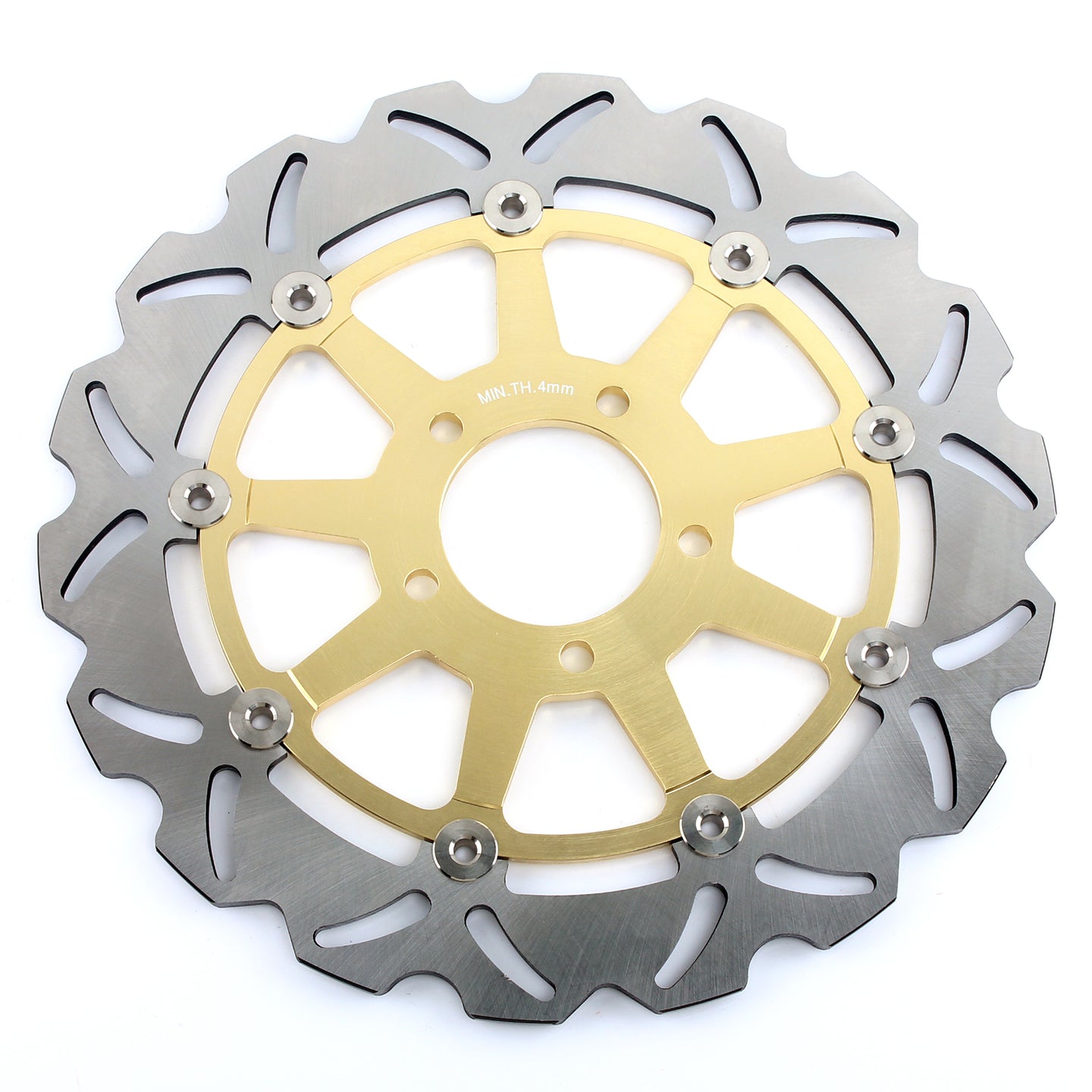

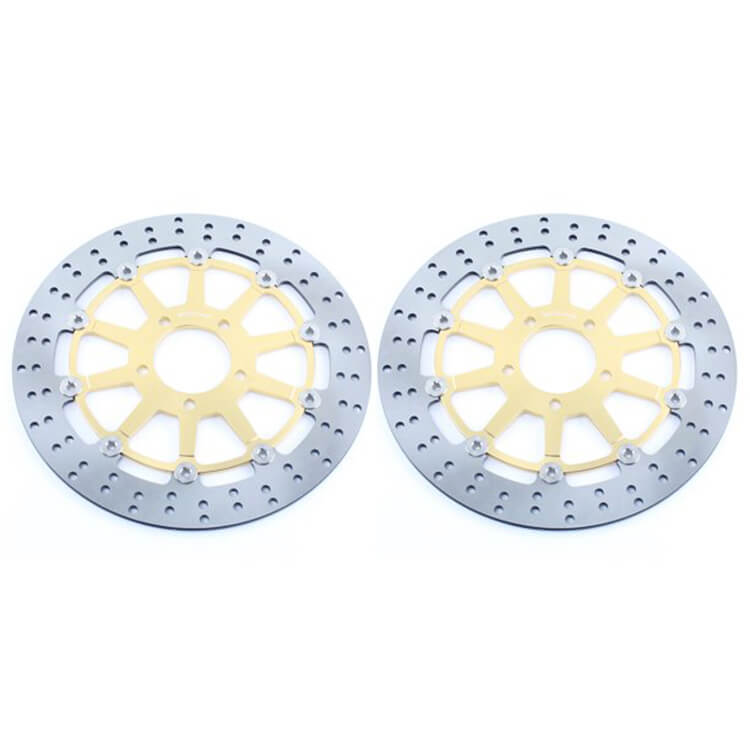

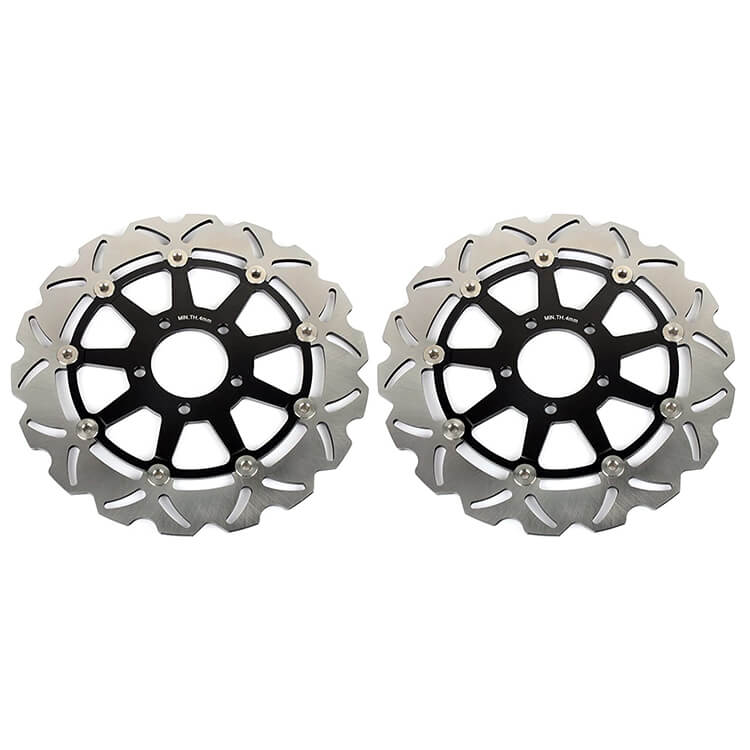

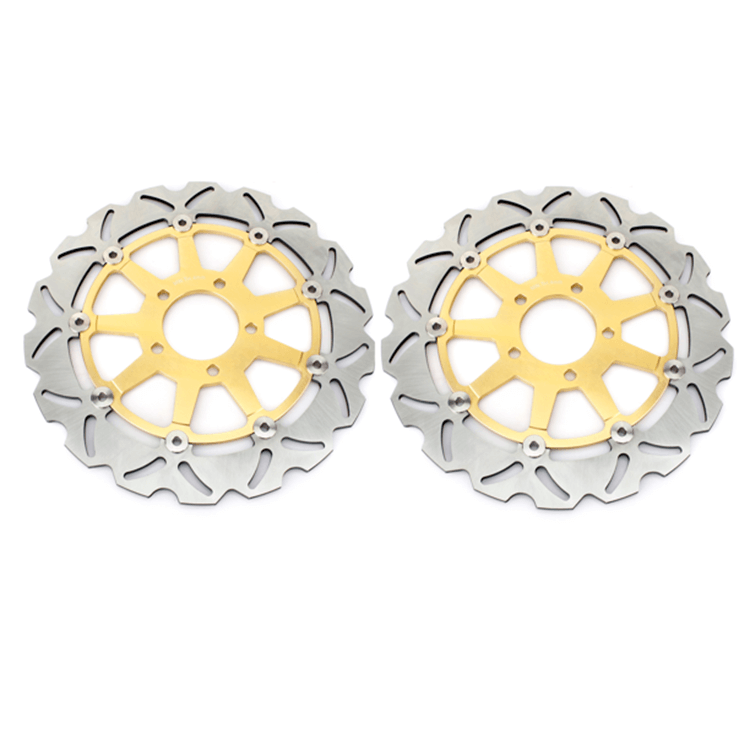

Front Brake Disc
Outer diameter: 320mm
Inner diameter: 69mm
Thickness: 5mm
Hole quantity: 5
Hole size: 10.4mm
Hole spacing: 91mm

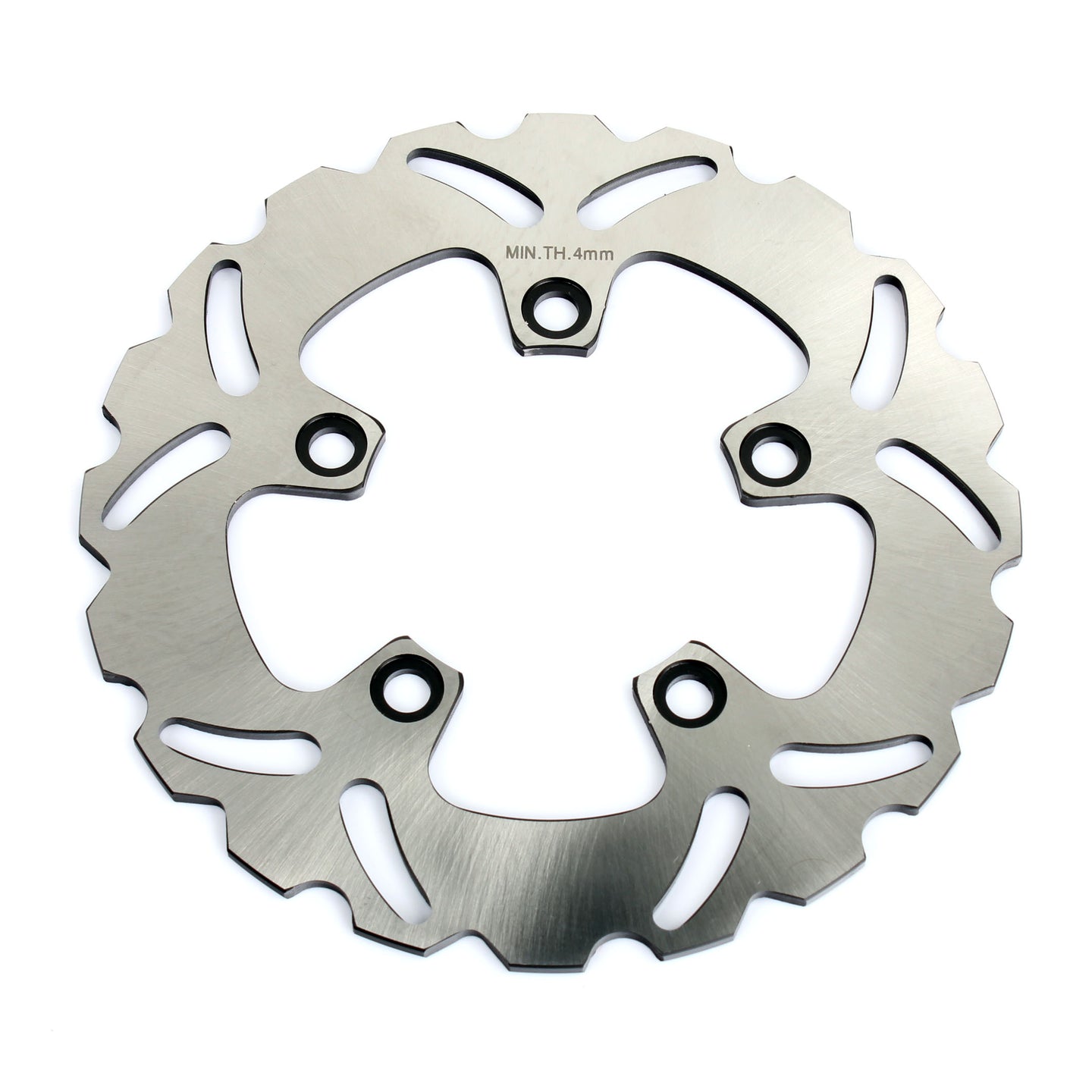

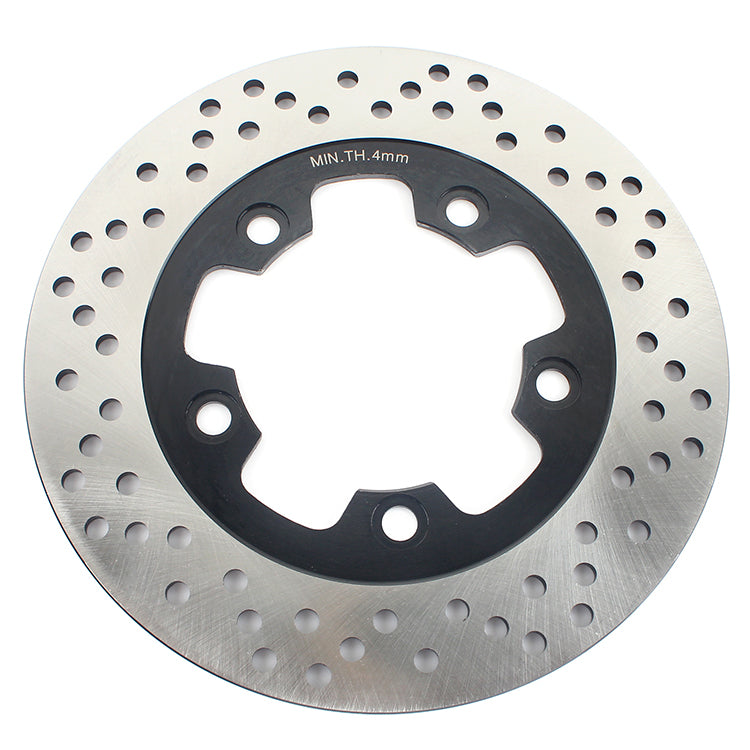

Rear Brake Disc
Outer diameter: 220mm
Inner diameter: 89mm
Thickness: 5mm
Hole quantity: 5
Hole size: 10.4mm
Hole spacing: 110mm
