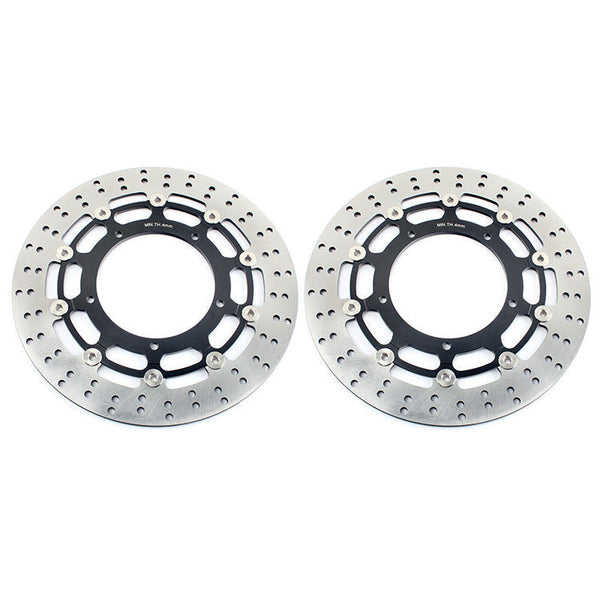

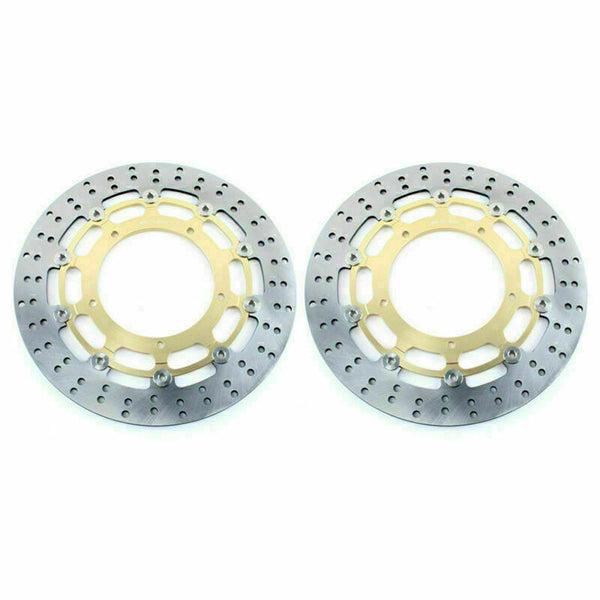

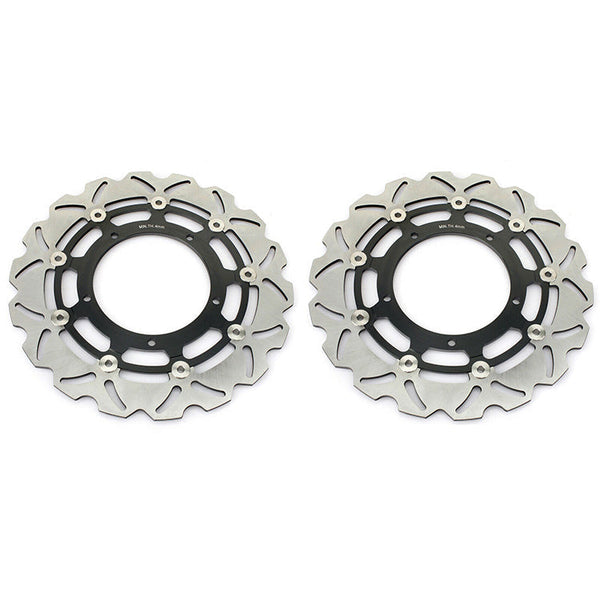

Front Rear Brake Disc Rotors for Yamaha FZ1 / FZ1 ABS 2006-2014 / FZ1N 2006-2016 / FZ1N ABS / FZ1S 2006-2012

• Fit for:
  Yamaha FZ1 1000CC model year 2006-2014;
  Yamaha FZ1 ABS A / V-Z,A,B RP16 2006-2014;
  Yamaha FZ1 FAZER 1000CC model year 2006-2012;
  Yamaha FZ1 FAZER ABS 1000CC model year 2007-2012;
  Yamaha FZ1 N N / V-Z,A,B RN16 2006-2016;
  Yamaha FZ1 N ABS NA / V-Z,A,B RN16 2006-2012;
  Yamaha FZ1 S F/Disc 320 OD S / V-Z,A,B RN16 2006-2012.
• 420 2Cr13 stainless steel and 6061 T6 aluminum material ensure long-lasting stopping power, HRC 36+-2 heat treatment harness ensures the brake area will not warped.

• The construction offers great heat dissipation and allows air to circulate through disc to maximize cooling efficiency.
• Slotted design improves rotor cooling for better heat dissipation and water dispersion, the slotted rotor ensures water and dirt are dispersed quickly when braking.
• Optimum shaped lightening hole, to provide weight savings, combined wih improved uniform disc cooling and brake pad cleaning effect.
• Replaces original disc with no modification required.

Front Brake Disc
Outer diameter: 320mm
Inner diameter: 132mm
Thickness: 5mm
Hole quantity: 5
Hole size: 8.4mm
Hole spacing: 150mm

Rear Brake Disc
Outer diameter: 245mm
Inner diameter: 105mm
Thickness: 5mm
Hole quantity: 5
Hole size:10.5mm
Hole spacing: 125mm
