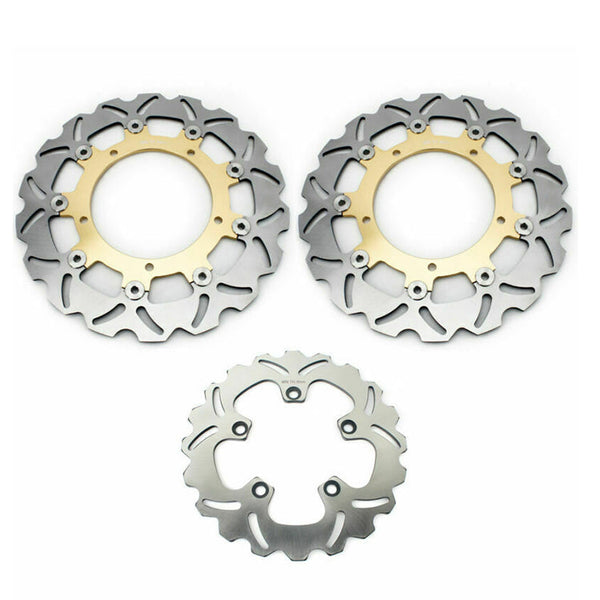

Front Rear Brake Disc Rotors for Yamaha FZ6 Fazer S2 / FZ6 Fazer S2 ABS 2007-2010 / MT-03 2005-2014

Fit for:
Yamaha FZ6 FAZER S2 600CC model year 2007-2008;
Yamaha FZ6 S2 600CC model year 2007-2010;
Yamaha FZ6- FAZER (RJ07/e13/0072) 600CC model year 2004-2008;
Yamaha MT03 660CC model year 2006-2011;
Yamaha 600cc FZ6 600 2004-2007;
Yamaha 600cc FZ6 600 Fazer 2004-2005;
Yamaha 600cc FZ6 600 Fazer 2006-2007;
Yamaha 600cc FZ6 600 Fazer S2, ABS 2007-2009;
Yamaha 600cc FZ6 600 Fazer S2, ABS 2010-2010;
Yamaha 600cc FZ6 600 S2, ABS 2007-2009;
Yamaha 600cc FZ6 600 S2, ABS 2010-2010;
Yamaha 600cc FZ6R 600 2009-and up;
Yamaha 660cc MT-03 2005-2014 .

• Material: stainless steel 420 (2Cr13) and aluminum alloy 6061
• Anodized center hub to avoid oxidation.
• The construction offers great heat dissipation and allows air to circulate through disc to maximize cooling efficiency.
• CNC laser cut slotted design improves rotor cooling for better heat dissipation and water dispersion, the slotted rotor ensures water and dirt are dispersed quickly when braking.
• Optimum shaped lightening hole, to provide weight savings, combined wih improved uniform disc cooling and brake pad cleaning effect.
• Replaces original disc with no modification required.

Front Brake Disc
Outer diameter: 300mm
Inner diameter: 132mm
Thickness: 5mm
Hole quantity: 5
Hole size: 8.4mm
Hole spacing: 150mm

Rear Brake Disc
Outer diameter: 245mm
Inner diameter: 105mm
Thickness: 5mm
Hole quantity: 5
Hole size: 10.5mm
Hole spacing: 125mm
