Front Rear Brake Disc Rotors for Yamaha TZR125 1993-1995

• Fit for Yamaha TZR 125 3JB,4JB,4HW,4HX 1993-1995.
• Stainless steel 420 (2Cr13) and aluminum alloy 6061 ensure excellent brake performance and stopping power under all conditions.

• CNC milled and anodized.
• All are heat treatment to ensure brake area not warped and approve great performance.
• The shape of the disc ensures good heat dissipation under heavy braking sessions, reducing brake fade, minimising warping, and ensuring rotor longevity.
• The slotting on the brake surface ensure water and dirt are dispersed quickly, and also reduce weight.
• Direct bolt on. Easy installation, no modification required.
• Surface finished for precise smoothness and then zinc coated to prevent corrosion or rusting in areas not contacted by the brake pad.
• Please replace your rotor when it reaches the minimum thickness we marked on the surface to ensure your safety.

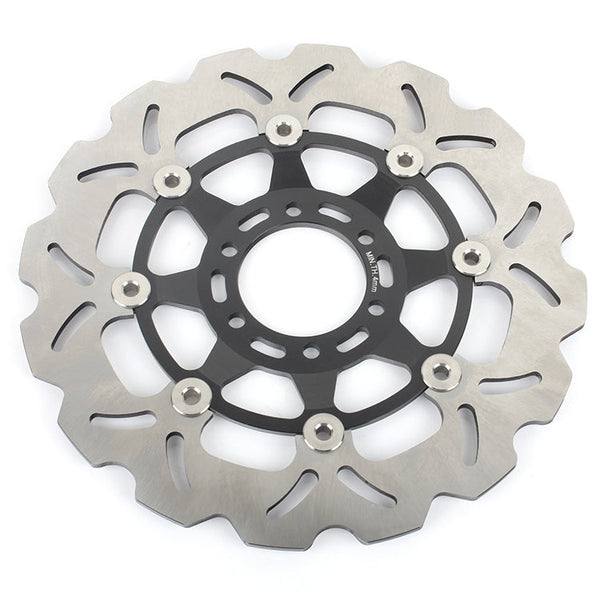

Front Brake Disc
Outer diameter 282mm
Inner diameter 64mm
Thickness 4.5mm
Hole quantity: 6
Hole size 8.5mm
Hole spacing 80mm
Offset height 9.5mm

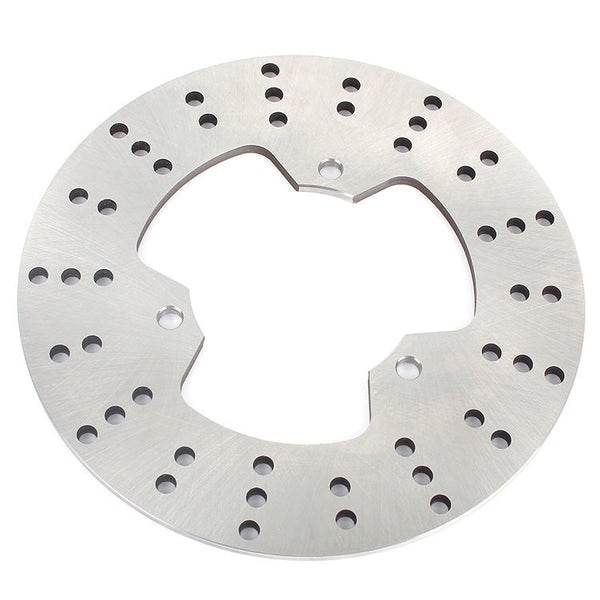

Rear Brake Disc
Outer diameter 210mm
Inner diameter 84mm
Thickness 5mm
Hole quantity: 3
Hole size 8.5mm
Hole spacing 102mm
