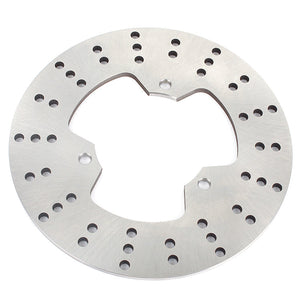

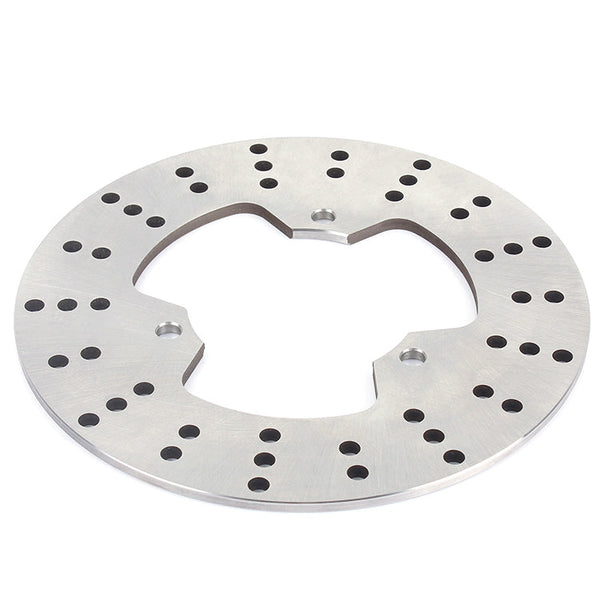

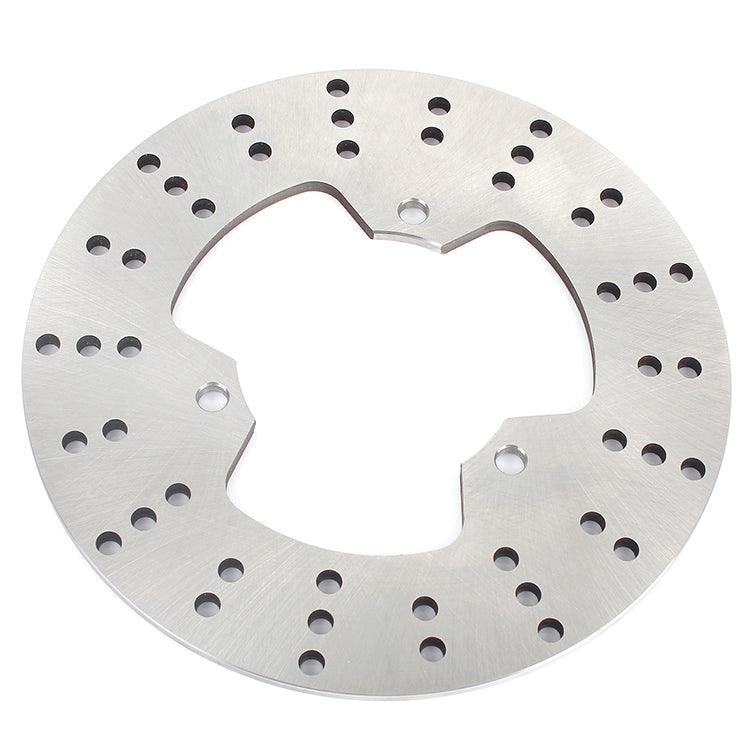

Rear Brake Disc Rotor for Yamaha FZX250 Zeal 1991-and up / R1-Z250 1997-and up / TDR250 1988-1992 / TZR250 1985-1992

• Fit for:
  Yamaha TZR 125 3PX2,3PC3 1989-1992;
  Yamaha TZR 125 R 4DL1/ 4DL2 1991-1993;
  Yamaha TZR 125 RR 4DL3 1994-1995;
  Yamaha TZR 150 R 4AP2 2000-;
  Yamaha SDR 200 2TV 1987-1989;
  Yamaha FZR 250 EXUP 1987-1988;
  Yamaha FZX 250 Zeal 3YX 1991-;
  Yamaha R1-Z 250 1997-;
  Yamaha TDR 250 1988;
  Yamaha TDR 250 3CK 1989-1992;
  Yamaha TZR 250 1KT/2AW 1985-1987;
  Yamaha TZR 250 2MA 1987-1992;
  Yamaha TZR 250 3MA 1989;
  Yamaha RI-Z 350 1992;
  Yamaha FZR 400 Genesis 1986-1987;
  Yamaha FZR 400 R 3EN2 1988-1989;
  Yamaha FZR 400 RR FrNo08101- 3TJ 1990-1992;
  Yamaha FZR 400 RR EXUP DX 4DX 1990-1995;
  Yamaha FZR 400 RR SP 3TJ 1990-1992;
  Yamaha SRX 600 1996-;
  Yamaha SZR 660 4SU 1995-2001;
  Yamaha SZR 660 (Italy) 1995;
  Yamaha FZR 750 R OWO1 3PJ 1989-1992.
• Made from heat treated 420 stainless steel with higher friction, delivers maximum stopping power and greatly enhances braking performance.
• Heat treated to ensure warp resistance.
• Optimum shaped lighting holes to provide weight saving, improved disc cooling and brake pad cleaning effect.

• The construction allows for heat dissipation and increases air circulation around brake pad to improve cooling.
• Directly bolt on, no additional hardware necessary.
• We marked the Min Thickness on the surface ,it means you should replace the brake disc rotor when the thickness with Minimum Thickness to ensure save ridding

Outside Diameter 210mm
Inside Diameter 84mm
Bolt Hole Circumference 102mm
Bolt Hole Quantity 3
Bolt Hole Size 8.5mm
Thickness 5.0mm
Minimum Thickness 4.5mm
